Hua Tuo SDZ-II acupuncture stimulator

Electro-Stimulator with 6 channels and digital timer (type SDZ-II)

Proven device from Hwato for electro acupuncture. 6 channels. Operating optionally with power adapter or batteries. Current strength individually adjustable for each channel. 3 stimulation patterns with adjustable frequency. Can also be used as a TENS device with the electrodes supplied.

2 year guarantee. CE-certified.

Set includes:

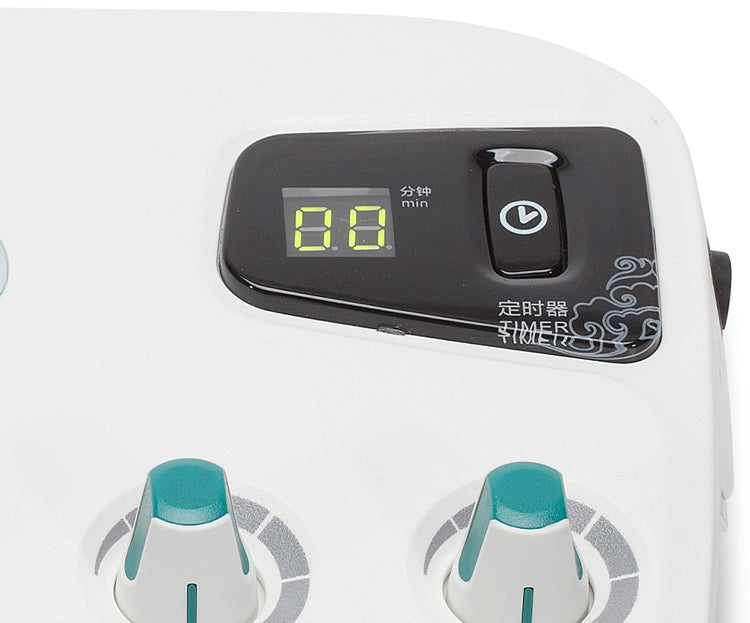

- SDZ-II electro acupuncture device with digital timer
- 6 different colored twin cables for connecting electrodes or needle clips
- 12 needle clips with plug connection (6 x red, 6 x yellow)
- 12 self-adhesive electrodes 50 x 50 mm with plug connection
- 1 power adapter
- English manual
- batteries are not included


Technical data:
- Supply voltage 9V DC
- Output power <10mA (250 Ohm)
- 6 independently adjustable output channels
- Frequency adjustable from 1 to 100 Hertz

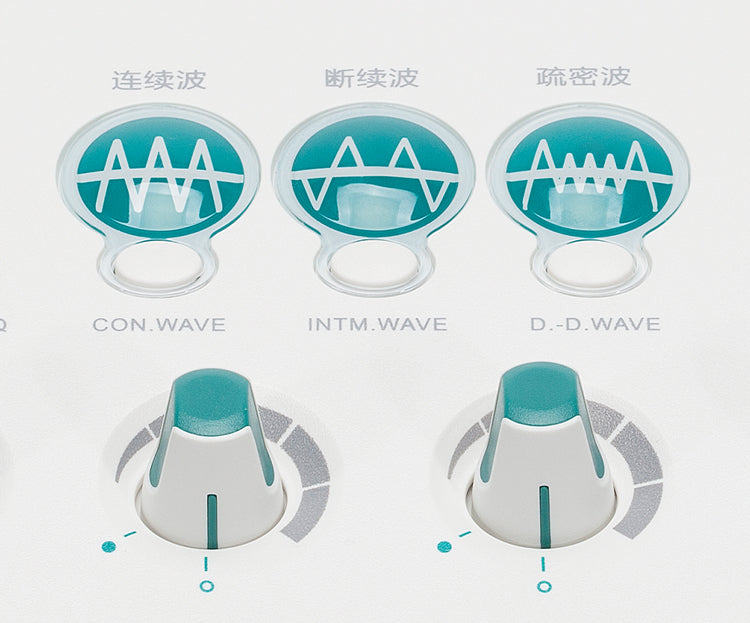

- 3 waveforms
- Continuous
- Intermittent (15 seconds continuously, 5 seconds pause)
- High and low frequency in a ratio of 5: 1 (10 sec and 5 sec)
- Weight without battery 650 g
- Dimensions 28 x 15 x 5 cm
- Functions with 6 standard 1.5V Mignon AA UM3 batteries or power adapter.
- The device has a type C plug (Euro plug)

Origin: Hwato, China
